SD-109-N copy

SD-109-Nitrile

W × H1.000 × 0.625 in MaterialNitrile

Special Compounds Bulb Seals

Request a quote for SD-109-N → Spec sheet (PDF) Print spec sheet

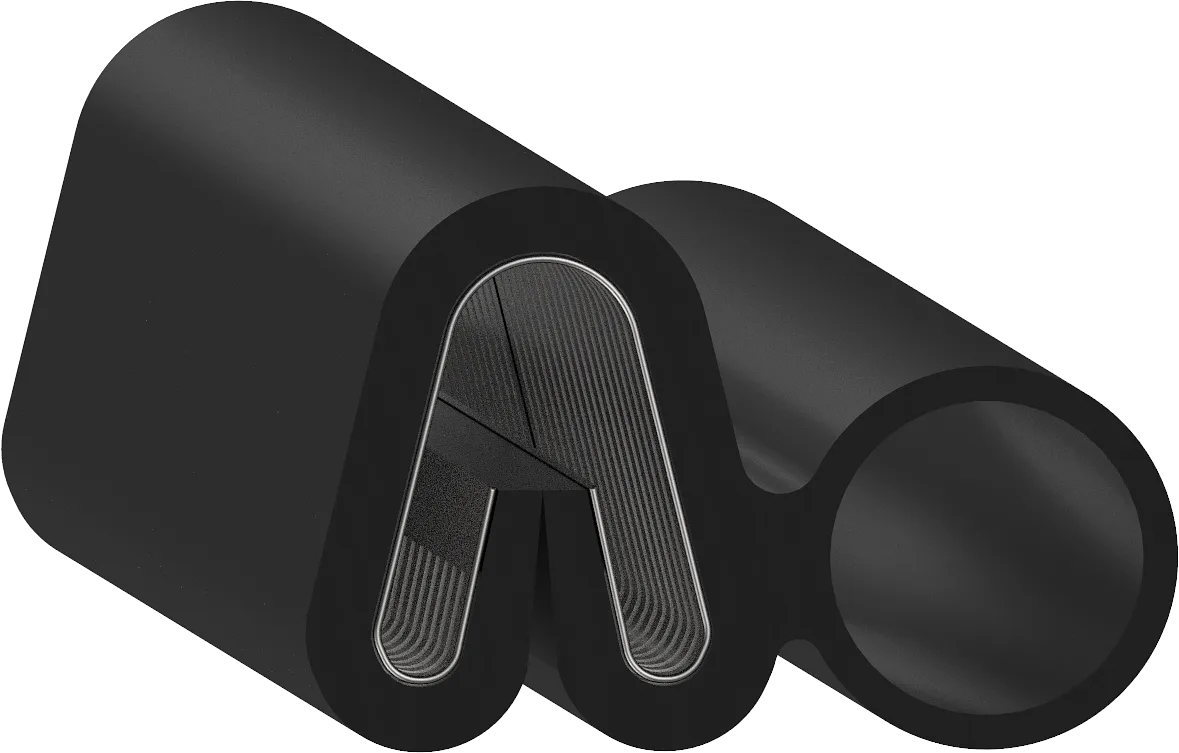

Cross-section drawing of SD-109-N — Cross-section — SD-109-NNot to scale

Specification

As drawn.

Specification for SD-109-N
Width	1.000" 25.4 mm
Height	0.625" 15.9 mm
Flange	0.125" 3.2 mm
Material	Nitrile
Durometer	75 Shore A
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
