RE-095 copy

RE-095

W × H0.547 × 0.943 in MaterialRubber

Other Extrusions

Request a quote for RE-095 → Spec sheet (PDF) Print spec sheet

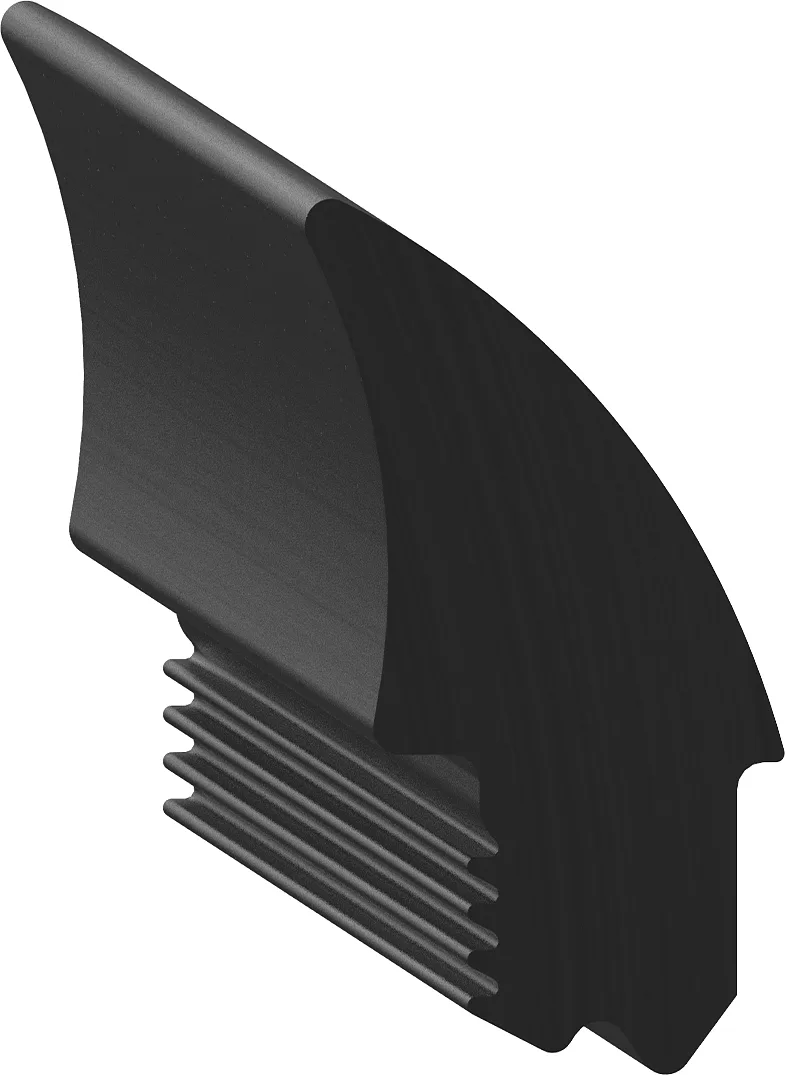

Cross-section drawing of RE-095 — Cross-section — RE-095Not to scale

Specification

As drawn.

Specification for RE-095
Width	0.547" 13.9 mm
Height	0.943" 24.0 mm
Flange	0.296" 7.5 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On
Flap	0.568" 14.4 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
