Seal catalogue · Other Extrusions · Part

RE-080 copy

RE-080

W × H0.500 × 0.420 in MaterialRubber

Other Extrusions Bulb Seals

Request a quote for RE-080 → Spec sheet (PDF) Print spec sheet

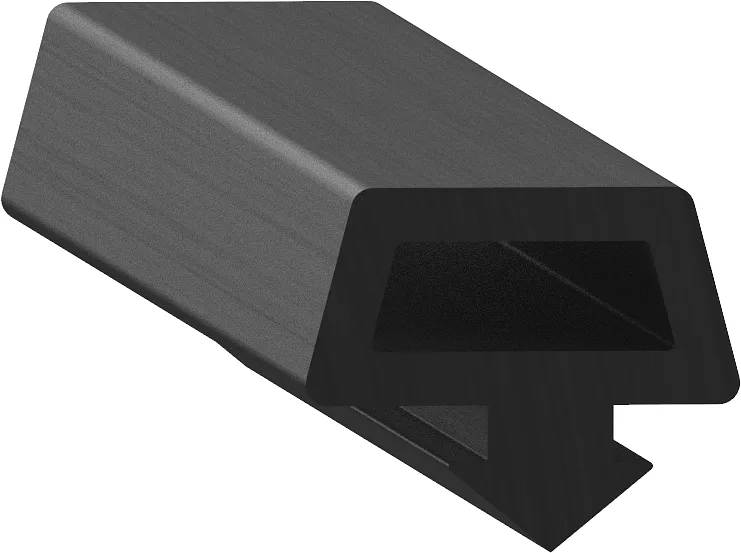

Cross-section drawing of RE-080 — Cross-section — RE-080Not to scale

Specification

As drawn.

Specification for RE-080
Width	0.500" 12.7 mm
Height	0.420" 10.7 mm
Material	Rubber
Type	Dense
Durometer	60 Shore A
Colour	Black
Mount	Pedestal
Bulb position	Top
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
