Seal catalogue · Window Seals · Part

RE-029 copy

RE-029

W × H0.316 × 0.220 in MaterialRubber

Request a quote for RE-029 → Spec sheet (PDF) Print spec sheet

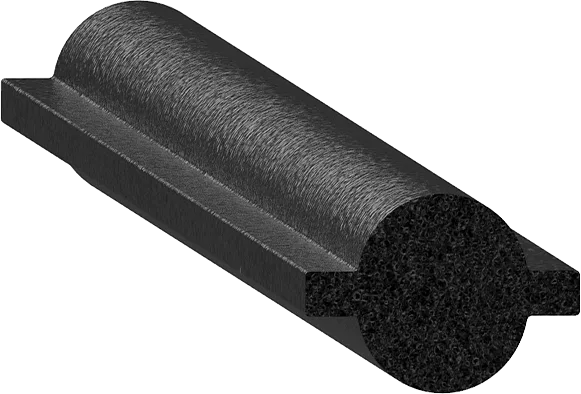

Cross-section drawing of RE-029 — Cross-section — RE-029Not to scale

Specification

As drawn.

Specification for RE-029
Width	0.316" 8.0 mm
Height	0.220" 5.6 mm
Material	Rubber
Type	Dense
Durometer	90 Shore A
Colour	Black

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

RE-028-A 0.960 × 0.675 in · Rubber RE-030 1.040 × 0.700 in · Rubber
