Seal catalogue · Other Extrusions · Part

PE-008 copy

PE-008

W × H0.650 × 0.510 in MaterialRubber

Other Extrusions

Request a quote for PE-008 → Spec sheet (PDF) Print spec sheet

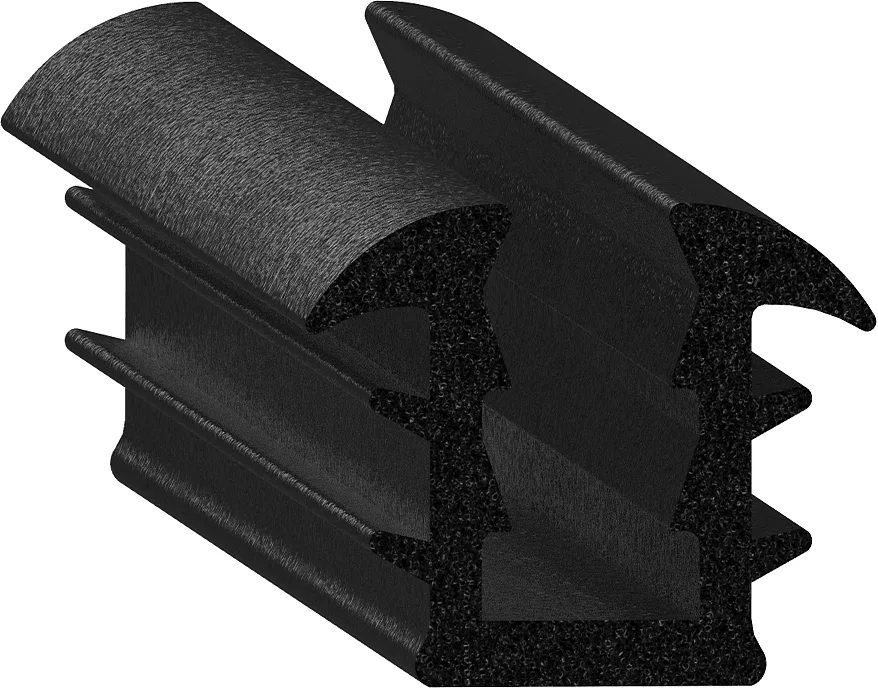

Cross-section drawing of PE-008 — Cross-section — PE-008Not to scale

Specification

As drawn.

Specification for PE-008
Width	0.650" 16.5 mm
Height	0.510" 13.0 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Dense
Durometer	80 Shore A
Colour	Black
Mount	Push On

Dimensions in inches to three places, as on the drawing; millimetres computed.
