Seal catalogue · Push On Rubber Seals · Part

ED-5360-Nitrile copy

ED-5360-Nitrile

W × H0.520 × 2.500 in MaterialNitrile

Push On Rubber Seals Special Compounds

Request a quote for ED-5360-Nitrile → Spec sheet (PDF) Print spec sheet

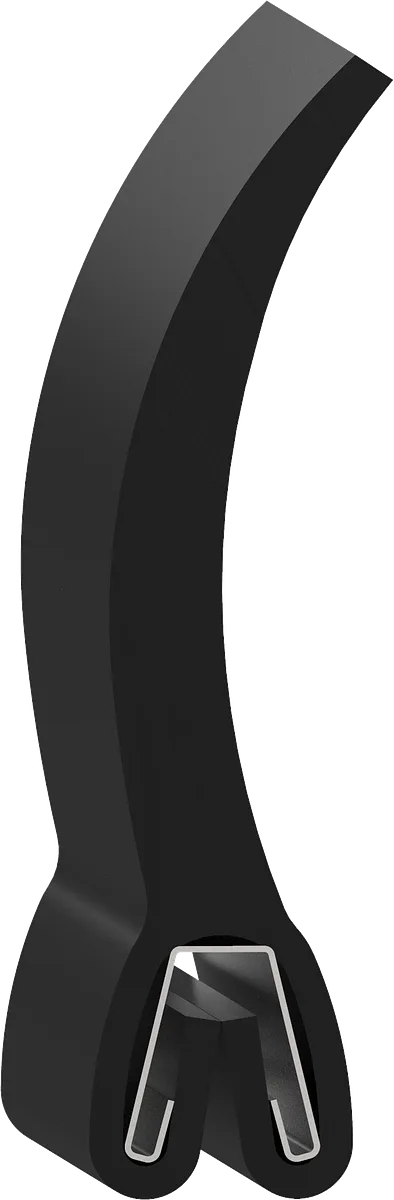

Cross-section drawing of ED-5360-Nitrile — Cross-section — ED-5360-NitrileNot to scale

Specification

As drawn.

Specification for ED-5360-Nitrile
Width	0.520" 13.2 mm
Height	2.500" 63.5 mm
Flange	0.125" 3.2 mm
Material	Nitrile
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-381 L Spring Steel
Shape	Flap Seal
Flap	1.680" 42.7 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

Need it in volume, or to a change?

Tell an engineer the application.
