ED-5343

W × H4.250 × 0.400 in MaterialRubber

Request a quote for ED-5343 → Spec sheet (PDF) Print spec sheet

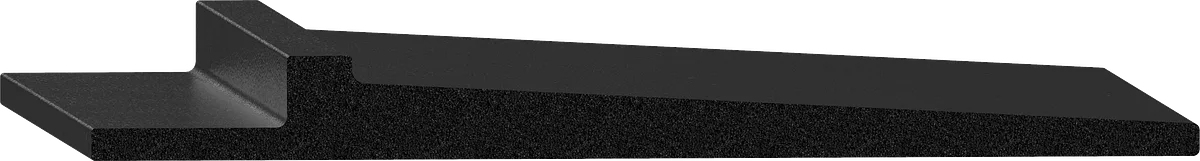

Cross-section drawing of ED-5343 — Cross-section — ED-5343Not to scale

Specification

As drawn.

Specification for ED-5343
Width	4.250" 108.0 mm
Height	0.400" 10.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Shape	Flap Seal
Flap	3.200" 81.3 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

TH-500 5.000 × 0.200 in · Rubber TH-500-W 5.000 × 0.200 in · Rubber
