DU-109-BRAUN copy

DU-109

W × H1.244 × 0.695 in MaterialRubber
Push On Rubber Seals Bulb Seals
Request a quote for DU-109-BRAUN → Spec sheet (PDF) Print spec sheet

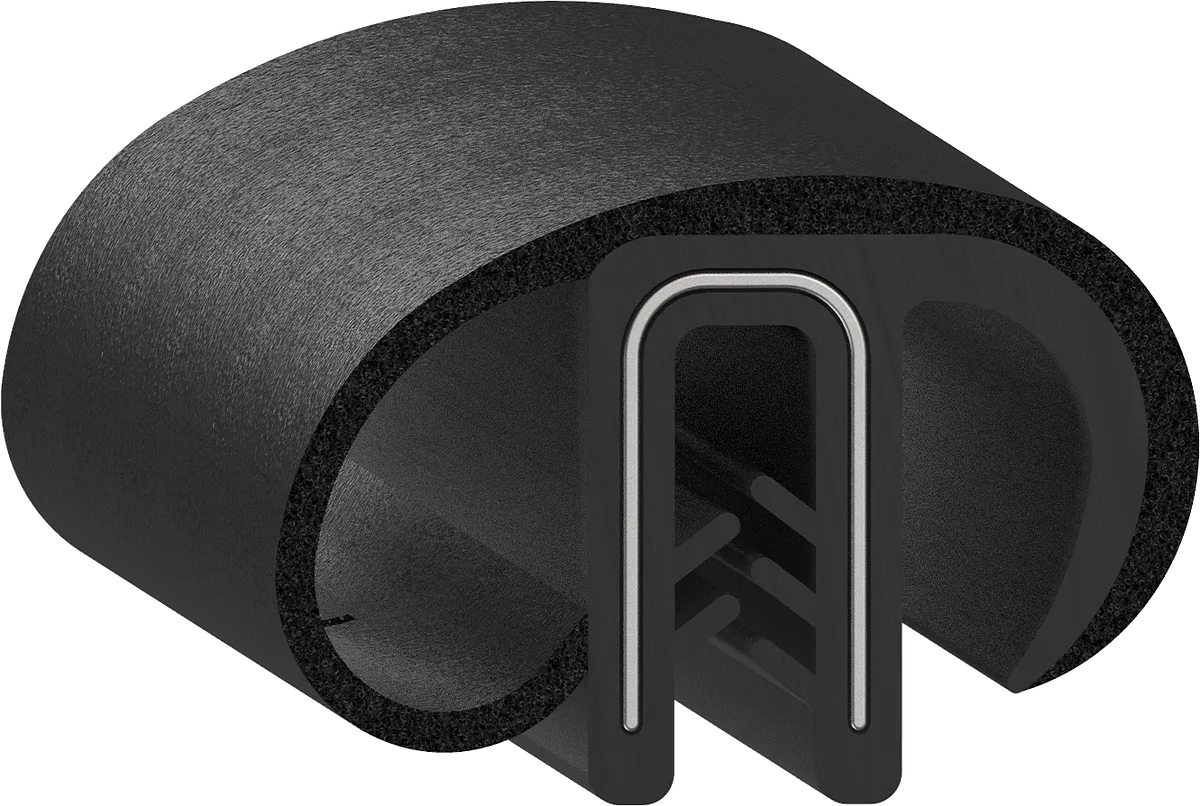

Cross-section drawing of DU-109-BRAUN
Cross-section — DU-109-BRAUNNot to scale
Specification

As drawn.

Specification for DU-109-BRAUN
Width 1.244" 31.6 mm
Height 0.695" 17.7 mm
Flange 0.180" 4.6 mm
Material Rubber
Type Sponge
Durometer 2A4 (sponge grade)
Colour Black
Mount Push On
Bulb position Side
Core 1.315in Wire
Second durometer70 Durometer
ShapeBulb Seal and Flap Seal
Flap0.560" 14.2 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
