Seal catalogue · Push On Rubber Seals · Part

DU-082 copy

DU-082

W × H1.320 × 2.500 in MaterialRubber

Request a quote for DU-082 → Spec sheet (PDF) Print spec sheet

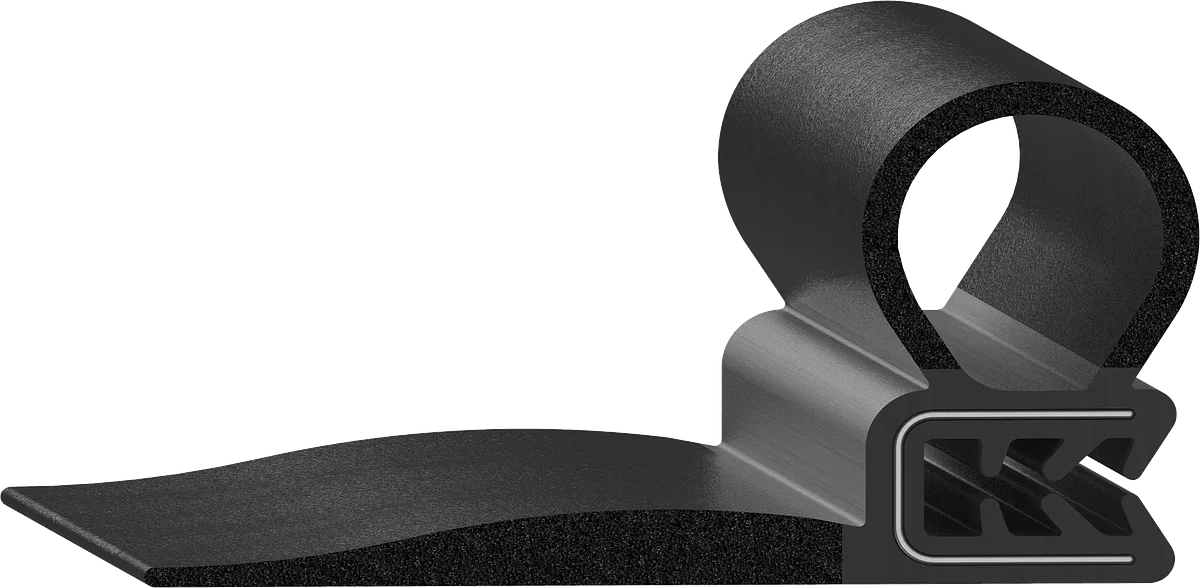

Cross-section drawing of DU-082 — Cross-section — DU-082Not to scale

Specification

As drawn.

Specification for DU-082
Width	1.320" 33.5 mm
Height	2.500" 63.5 mm
Flange	0.258" 6.6 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	1.43in Wire
Second durometer	70 Durometer
Shape	Bulb Seal and Flap Seal
Flap	1.894" 48.1 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-50462 1.000 × 1.800 in · Rubber ED-50463 1.100 × 2.150 in · Rubber ED-50473 1.200 × 2.250 in · Rubber ED-50474 1.220 × 2.650 in · Rubber
