Seal catalogue · Tape Seals · Part

DD-001 copy

DD-001

W × H0.660 × 0.575 in MaterialRubber

Tape Seals Other Extrusions

Request a quote for DD-001 → Spec sheet (PDF) Print spec sheet

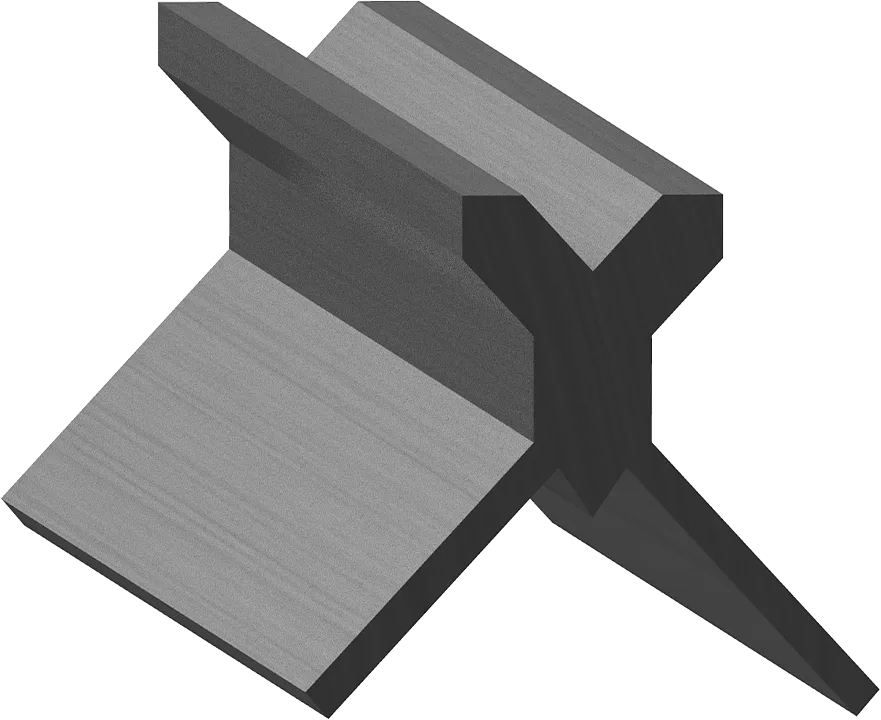

Cross-section drawing of DD-001 — Cross-section — DD-001Not to scale

Specification

As drawn.

Specification for DD-001
Width	0.660" 16.8 mm
Height	0.575" 14.6 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Tape
Tape	3M Heat-Activated Tape

Dimensions in inches to three places, as on the drawing; millimetres computed.
