Seal catalogue · Push On Rubber Seals · Part

BL-045 copy

BL-045

W × H4.360 × 1.550 in MaterialRubber

Push On Rubber Seals Bulb Seals

Request a quote for BL-045 → Spec sheet (PDF) Print spec sheet

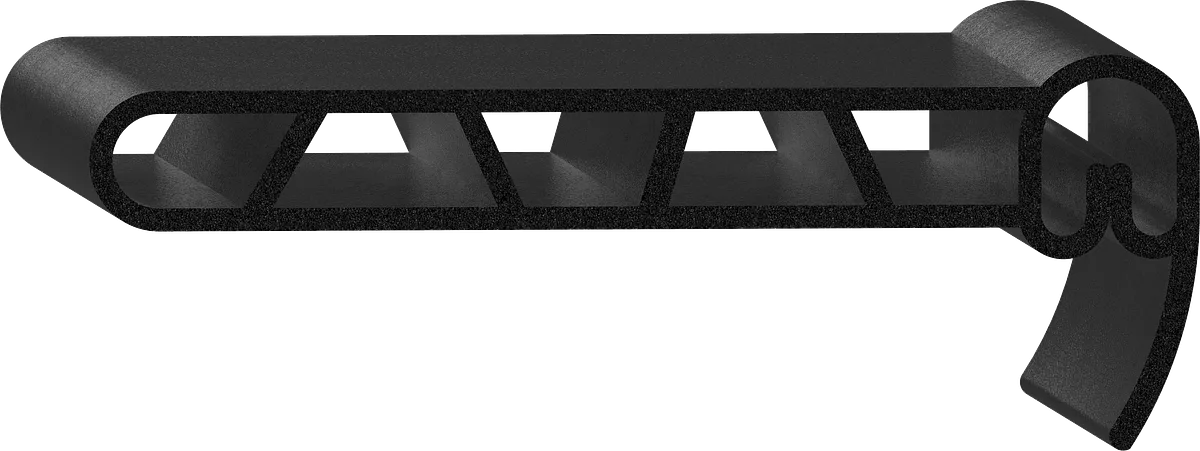

Cross-section drawing of BL-045 — Cross-section — BL-045Not to scale

Specification

As drawn.

Specification for BL-045
Width	4.360" 110.7 mm
Height	1.550" 39.4 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-500L Spring Steel
Shape	Bulb Seal and Flap Seal
Flap	0.770" 19.6 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
